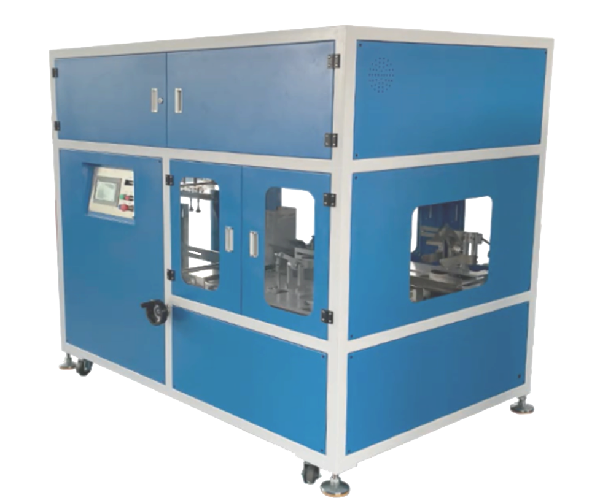

Fully Automatic Corrugated Box Forming Machine
MF-800
MF-800, Corrugated box forming machine is a very popular packaging method at present, widely used in all kinds of clothing, shoes, food, cosmetics packaging. The machine is suitable for cardboard and corrugated paper material, the production speed is fast and quality is high, and the labor cost of enterprises are greatly saved.
Quantity
Corrugated box forming machine info: (package corrugated box forming machine food corrugated box forming machine)
MF-800, Corrugated box forming machine is a very popular packaging method at present,(package corrugated box forming machine) widely used in all kinds of clothing, shoes, food, cosmetics packaging.(food corrugated box forming machine) The machine is suitable for cardboard and corrugated paper material box forming, the production speed is fast and quality is high, and the labor cost of enterprises are greatly saved.
MF-800, Corrugated box forming machine is a very popular packaging method at present,(package corrugated box forming machine) widely used in all kinds of clothing, shoes, food, cosmetics packaging.(food corrugated box forming machine) The machine is suitable for cardboard and corrugated paper material box forming, the production speed is fast and quality is high, and the labor cost of enterprises are greatly saved.
The machine is controlled by PLC and operated by touch screen. Molding working station, lateral step control, input parameters for adjusting, which has compact structure and located small space. Fully enclosed cover, safe. (corrugated box forming machine)
1. The total height of feeding platform to put cardboards or corrugated is 400mm.
(package corrugated box forming machine food corrugated box forming machine)
2. Automatic feeding and forming, standard module push plate, easy to adjust.
(package corrugated box forming machine food corrugated box forming machine)
3. Suitable for making of the same box size at same time, if need to change other size, manual adjustment can be done, it takes 10-15 minutes;
(package corrugated box forming machine food corrugated box forming machine)
4. The rational design of the machine, synchronous box, bottom stamp forming, two sides of ears folding at same time.
(package corrugated box forming machine food corrugated box forming machine)
5. machine is widely used in electronic products, toys, food, shoes,clothing, cosmetics, medical medicine and other industries of packaging box production (package corrugated box forming machine food corrugated box forming machine)
6. Can be linked with other package machine. (package corrugated box forming machine food corrugated box forming machine)
Corrugated box forming machine: (package corrugated box forming machine food corrugated box forming machine)
package corrugated box forming machine food corrugated box forming machine

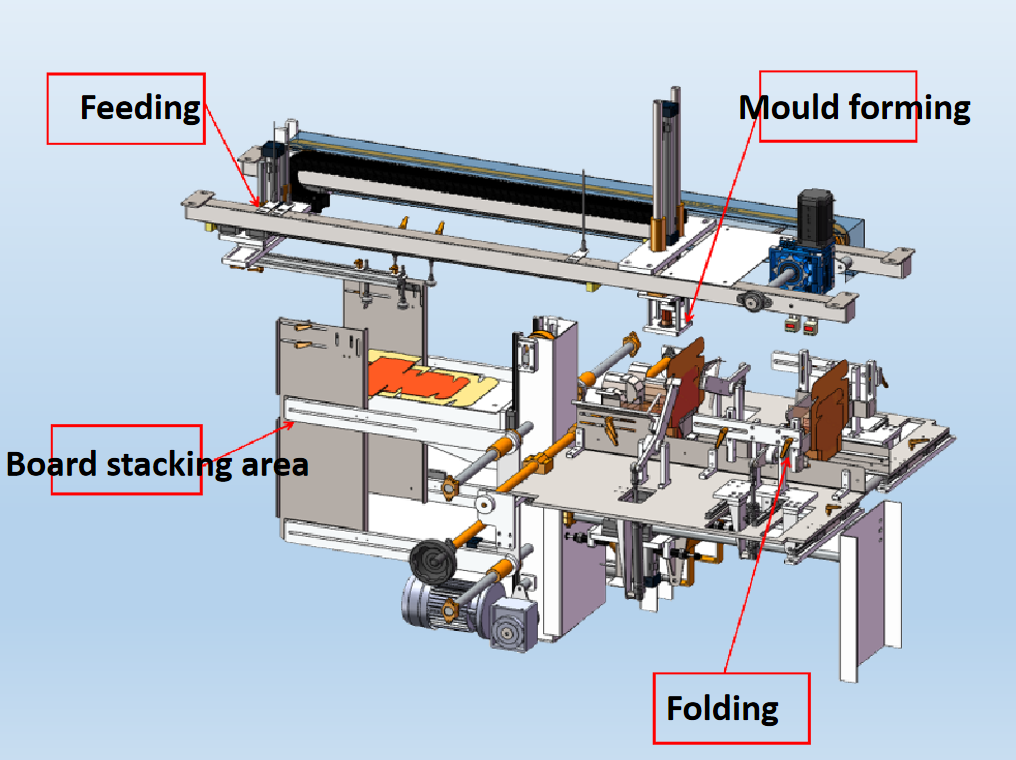

Corrugated box forming machine detail parts: (package corrugated box forming machine food corrugated box forming machine)
Forming mould, package corrugated box forming machine food corrugated box forming machine
Forming mould, package corrugated box forming machine food corrugated box forming machine

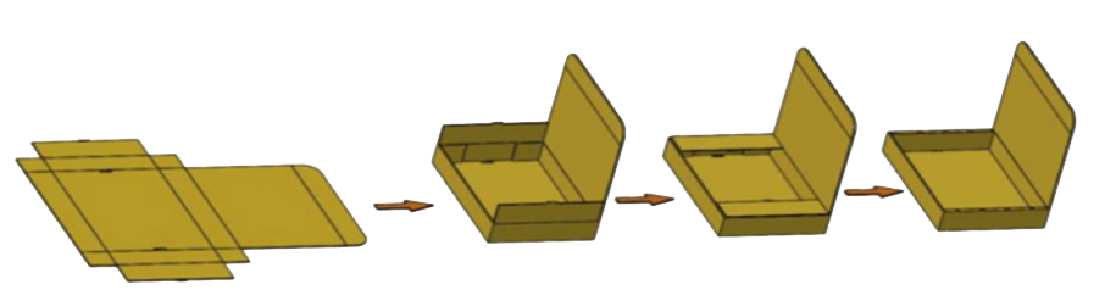

Corrugated box forming machine technology process:
package corrugated box forming machine food corrugated box forming machine
Corrugated box forming machine Parameters： (package corrugated box forming machine food corrugated box forming machine)
| Model | MF-800 |
| Maximum size of length | 300mm |
| Minimum size of length | 120mm |
| Maximun size of width | 200mm |
| Minimun size of width | 100mm |
| Maximun size of height | 70mm |
| Minimun size of height | 30mm |
| Cardboard thickness | ≥2mm |
| Paper stacking height | 400mm |
| Speed | 10-15pcs/min |
| Air pressure | 0.6-0.7MPa |
| Power | 220V/50HZ/1200W |
| Machine size (L*W*H) | 1900*1300*1800mm |
| Box exit height | 730mm |
| Machine weight | 450kg |
| Box compressive resistance | 1370KPa |
package corrugated box forming machine food corrugated box forming machine

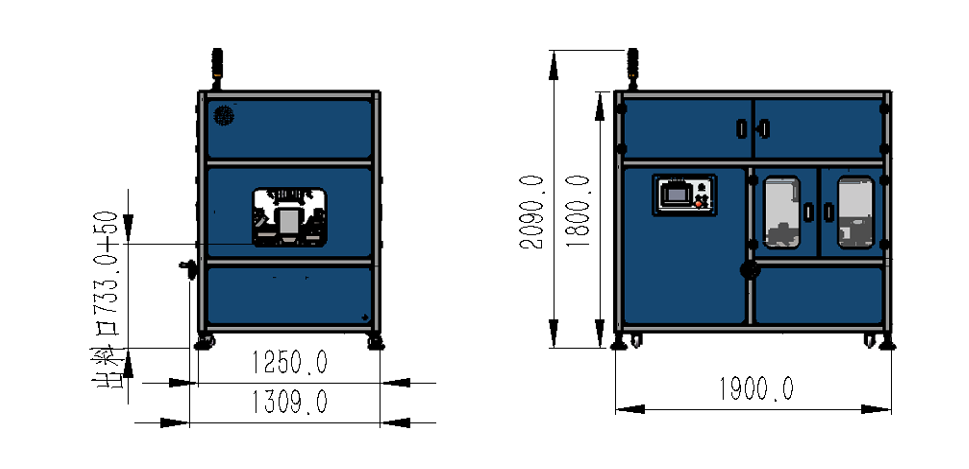

Corrugated box forming machine layout: (package corrugated box forming machine food corrugated box forming machine)
Payment & shipping terms: (package corrugated box forming machine food corrugated box forming machine)
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Package detail | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
package corrugated box forming machine food corrugated box forming machine
Service after sales: (package corrugated box forming machine food corrugated box forming machine)
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ: (package corrugated box forming machine food corrugated box forming machine)
1. What about the corrugated box forming machine warranty? (package corrugated box forming machine food corrugated box forming machine)
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the corrugated box forming machine breaks down, how do you help us solve the problem (package corrugated box forming machine food corrugated box forming machine)
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What othe machines are used to making the package box?
---- Necessary equipments:, Die Cutting machine, Printing Machine,
