high-performance automatic flatbed die cutting machine
RS-1050
RS-1050, Mainly used for all kinds of paper, gray board, corrugated paper Die cutting (full break or half break), with automatic remove waste , die cutting machine using steel knife, metal mold, steel wire (or steel mould), work by a certain pressure to the paper or cardboard cut into a certain shape. It is the first machine on making box after the printing work， Large range of die cutting materials。
Quantity
Die cutting machine info: (fully automatic die cutting machine, flatbed die cutting machine)
RS-1050, Die cutting machine mainly used for all kinds of paper, gray board, corrugated paper Die cutting (full break or half break), with automatic remove waste function, (fully automatic die cutting machine) Die cutting machine using steel knife, metal mold, steel wire (or steel mould), work by a certain pressure to the paper ,cardboard and corrugated cut into a certain shape. It is the first machine on making box after the printing work， Large range of die cutting materials, and with the Rectification precision function for a high precision. (flatbed die cutting machine)
1. Using pliers to pick up the paper, it can ensure high-speed safety. (fully automatic die cutting machine, flatbed die cutting machine)
2. The special feeder design, the feeder units has two functions: normal and deceleration, which can be free choose according to the production. (fully automatic die cutting machine, flatbed die cutting machine)
3. The side positioning adopts a push-pull device, which can be selected according to different paper types. (fully automatic die cutting machine, flatbed die cutting machine)
4. Detection of double-sheet feeding or abnormal feeding for the front positioning, side positioning, and automatic shutdown device. (fully automatic die cutting machine, flatbed die cutting machine)
5. Pneumatic locking system for die cut frame. (fully automatic die cutting machine, flatbed die cutting machine)
6. Die cutting pressure can be adjusted according to paper quality, up to 300 tons. (fully automatic die cutting machine, flatbed die cutting machine)
7. The upper and lower needling devices of the waste removal section is simple and easy, and it is equipped with the secondary cleaning and removing the waste paper edge.
(fully automatic die cutting machine, flatbed die cutting machine)
8. The feeder and stacker are equipped with non-stop devices to ensure uninterrupted production. (fully automatic die cutting machine, flatbed die cutting machine)
9. Touch screen display system, including computerized automatic detection device, provides operation instructions for each part and abnormal elimination instructions.
(fully automatic die cutting machine, flatbed die cutting machine)
10. Wide range of die cutting capacity from 80g to within 4mm of corrugated paper. (fully automatic die cutting machine, flatbed die cutting machine)
11. The all-in-one machine, the height of the whole machine is increased by 300mm, and the pile of paper is increased by 25%.
(fully automatic die cutting machine, flatbed die cutting machine)

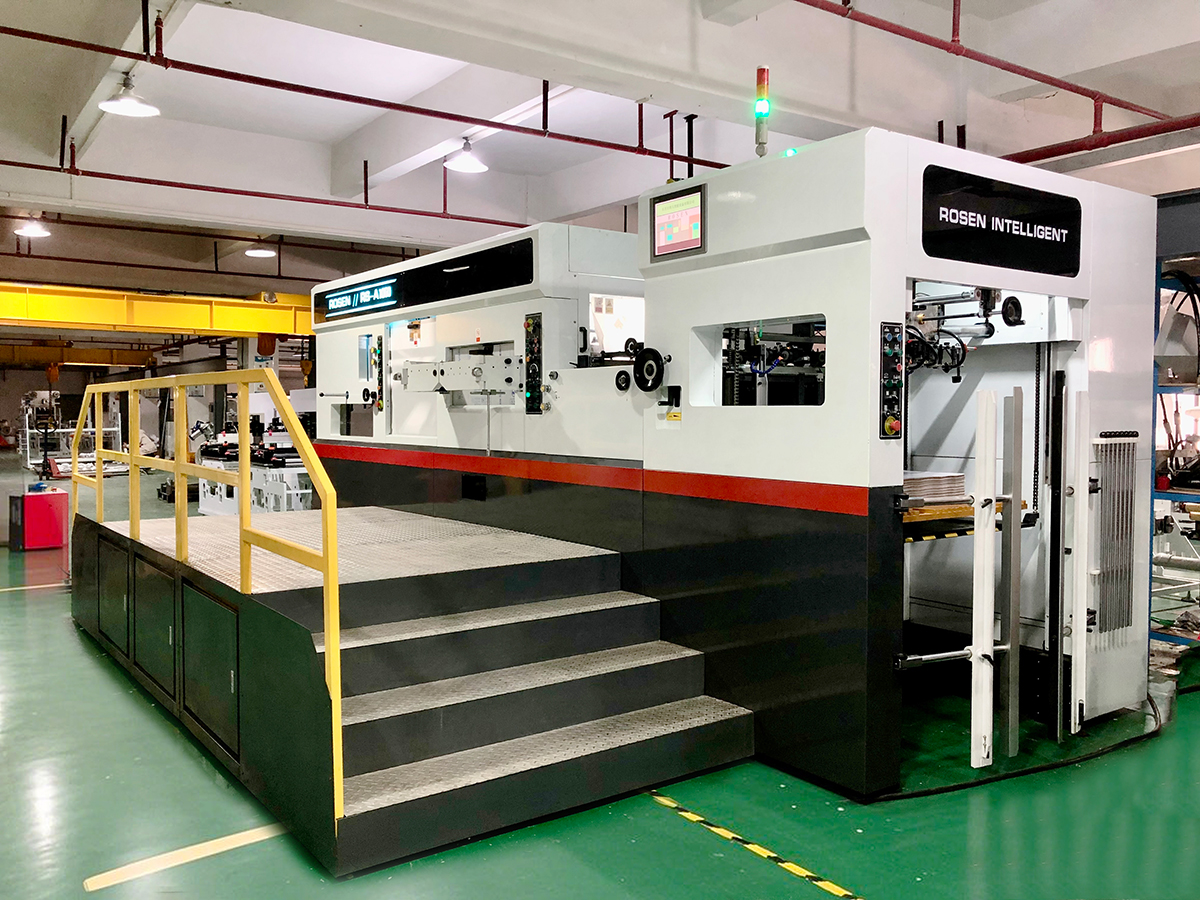

Die cutting machine photograph: ( fully automatic die cutting machine, flatbed die cutting machine)
fully automatic die cutting machine, flatbed die cutting machine
Die cutting machine detail parts: (fully automatic die cutting machine, flatbed die cutting machine)

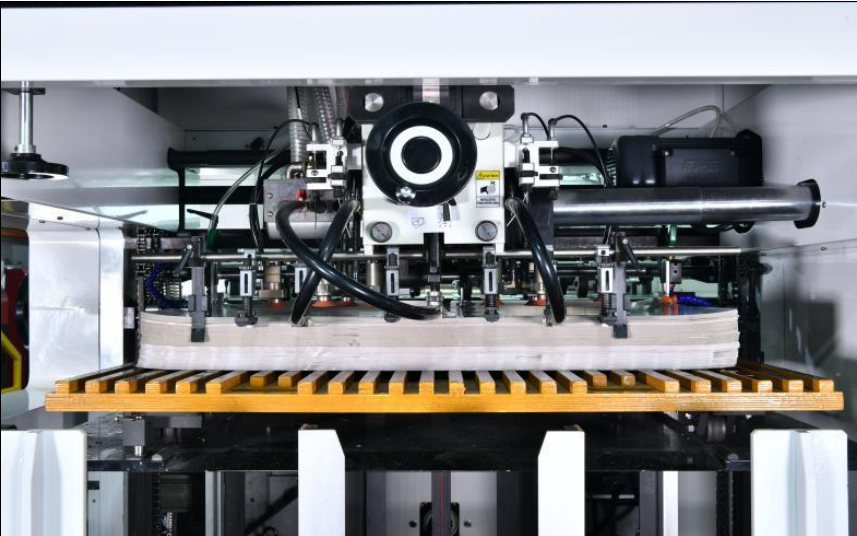

Paper feeding by feeder, fully automatic die cutting machine, flatbed die cutting machine

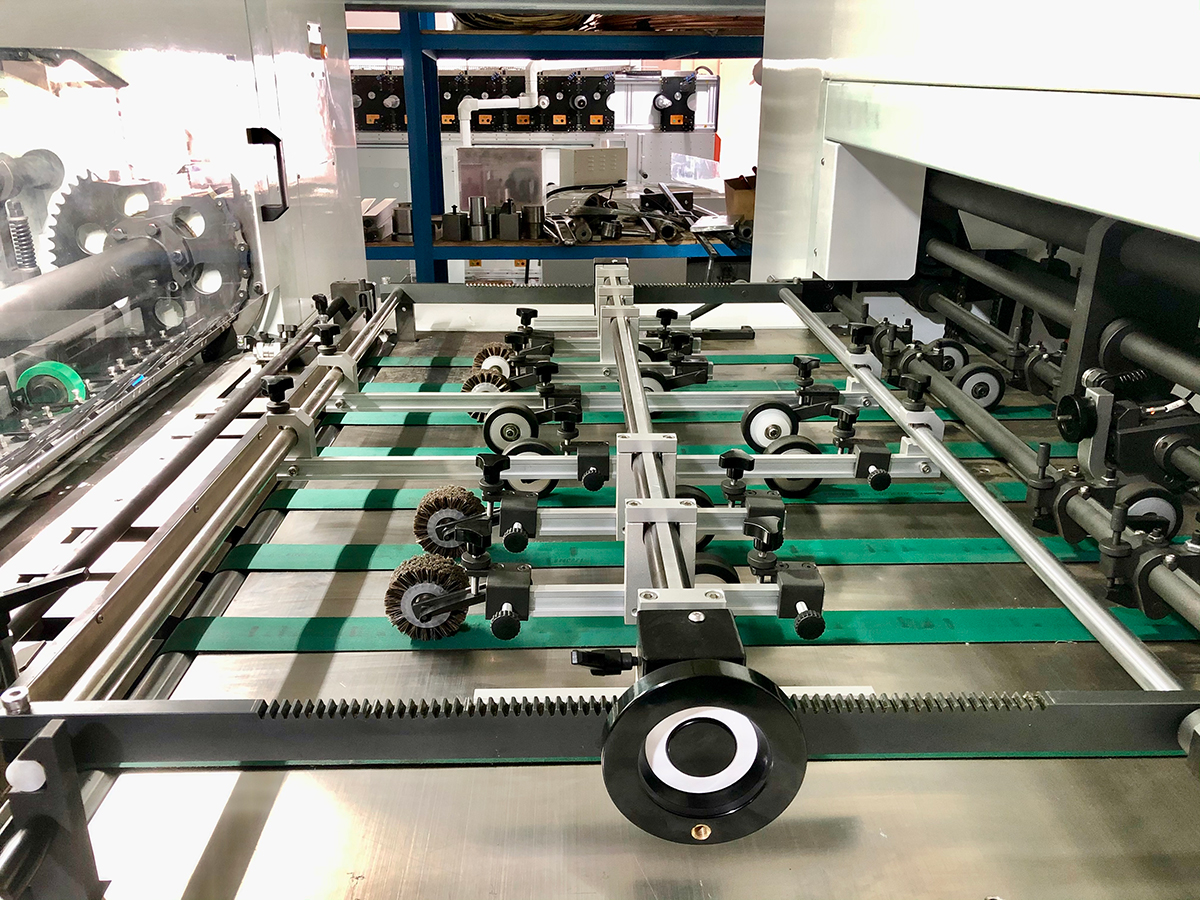

Rectification precision function fully automatic die cutting machine, flatbed die cutting machine

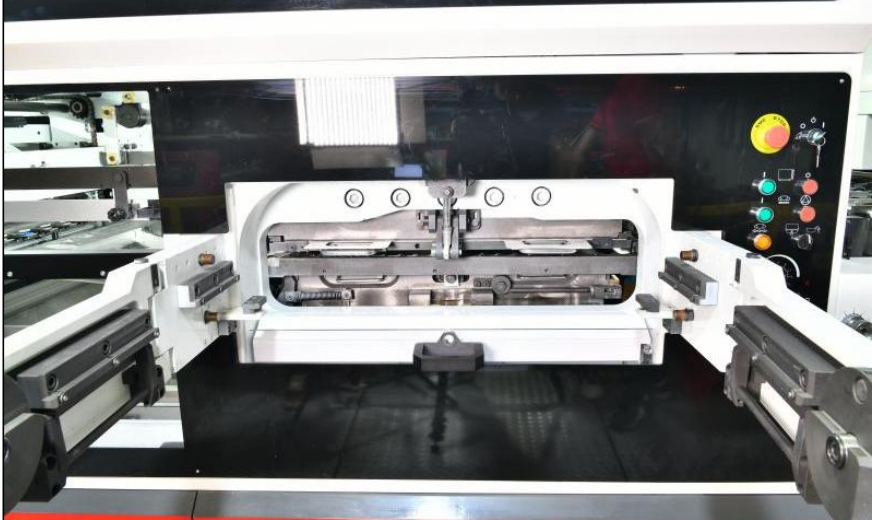

Die cutting part, fully automatic die cutting machine, flatbed die cutting machine

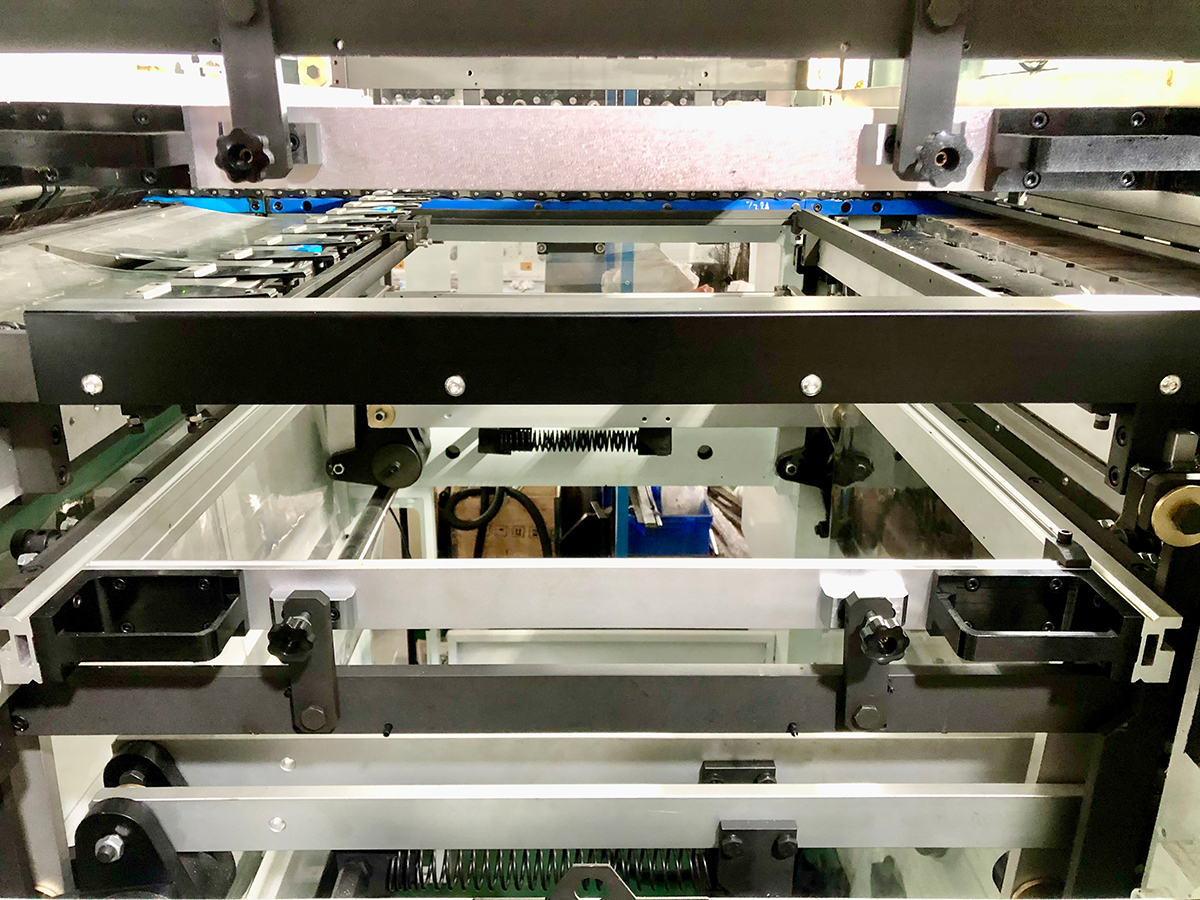

Waste removing, fully automatic die cutting machine, flatbed die cutting machine

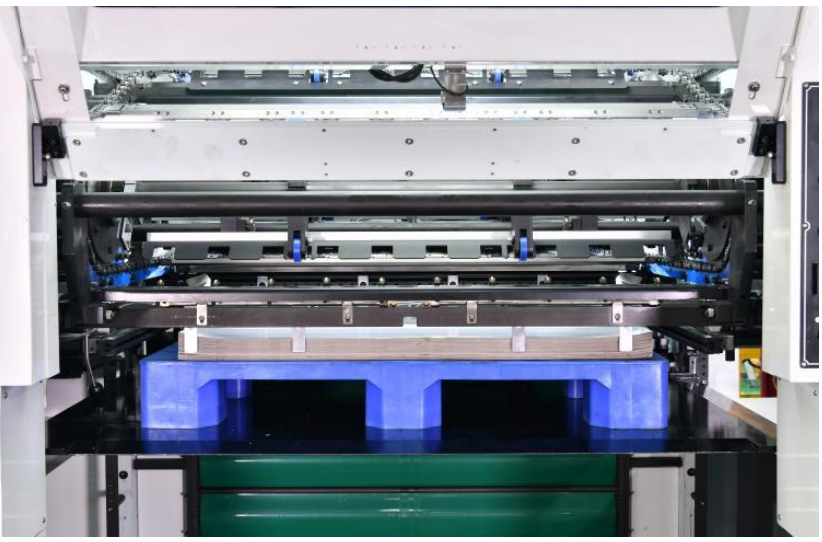

Paper stacking fully automatic die cutting machine, flatbed die cutting machine
Die cutting machine Parameters：(fully automatic die cutting machine, flatbed die cutting machine)
| Model | RS-1050 |
| Max paper size | 1050*750mm |
| Min paper size | 400*370mm |
| Max die cut size | 1040*730mm |
| Max die cut pressure | 300T |
| Available material | card:0.1-2mm/paper:80g- 2000g/corrugated:within 4mm |
| Gripper margin | 9-18mm |
| Die frame size | 1145*755mm |
| Die cut steel size | 5mm for single sheet or 4+1mm for composite plate |
| Max die cut speed | 7500 sheets/hour |
| Die cut accuracy | ±0.1mm |
| Main power | 25KW |
| Power | 380V/3 phase/50Hz |
| Air pressure | Pressure 0.6~0.7mpa, flow >0.8m³/min |
| Paper feeding stacking heigh | 1500mm |
| Finished paper stacking heigh | 1140mm |
| Machine size | 7115mm*4090mm*2450mm |
| Machine weight | 17T |
fully automatic die cutting machine, flatbed die cutting machine
Payment & shipping terms: (fully automatic die cutting machine, flatbed die cutting machine )
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Package detail | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
fully automatic die cutting machine, flatbed die cutting machine

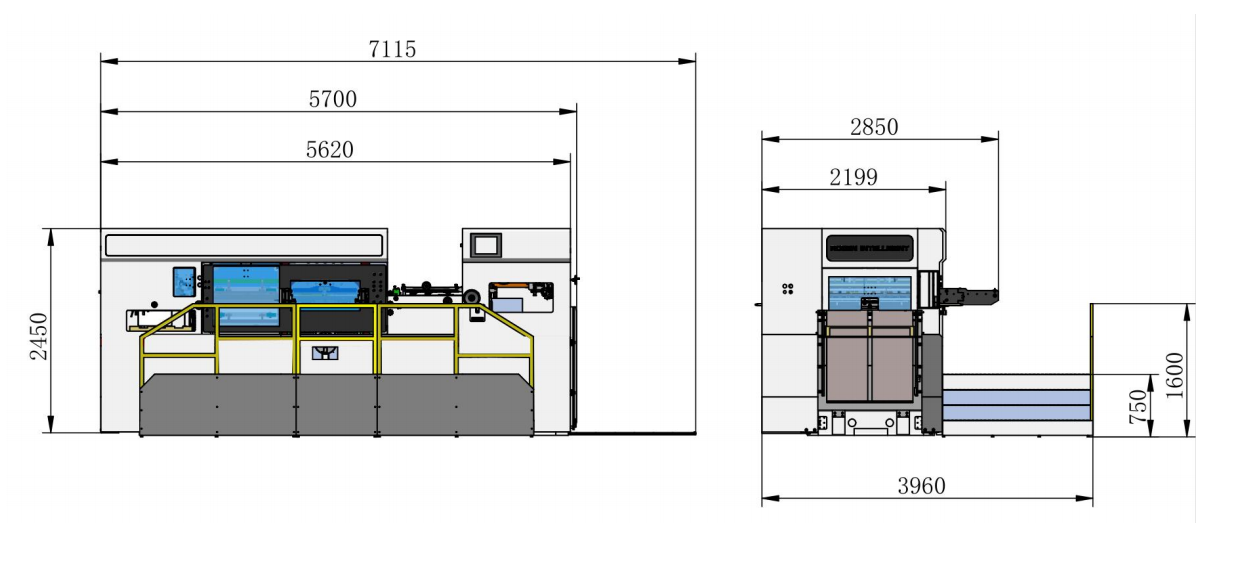

Die cutting machine layout: (fully automatic die cutting machine, flatbed die cutting machine )
fully automatic die cutting machine, flatbed die cutting machine
Service after sales:
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ:
1. What about die cutting machine warranty? (fully automatic die cutting machine, flatbed die cutting machine)
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the die cutting machine breaks down, how do you help us solve the problem (fully automatic die cutting machine, flatbed die cutting machine)
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What othe machines are used to making the package box?
---- Necessary equipments:Grooving machine, Die Cutting machine, Printing Machine, Case maker machine. fully auto rigid box making machine
