Fully Automatic Drawer Box Making Machine
MF-1910
MF-1910, high-speed drawer box forming machine adopts gray board cutting method and uses an electronic cam busalgorithm process to accelerate the operation speed. Combined with a high-precision splitter, it realizes a dualstation independent working mode. The machine has fastspeed and can make micro drawer boxes. lt is flexible tooperate and easy to adjust, which can reducemanufacturing costs from efficiency. it is a newsolution for outsourcing products such as electronic cigarette drawer boxes,jewelry drawer boxes, cosmetics drawer boxes,mobile phone drawer boxes, tea drawerboxes, etc.
Quantity
Drawer box making machine info: (luxury drawer box making machine, box making machine)
MF-1910, high-speed drawer box making machine adopts gray board cutting method and uses an electronic cam busalgorithm process to accelerate the operation speed, luxury drawer box making machine. Combined with a high-precision on positioning, it realizes a dualstation independent working mode. The machine has fast speed and can make micro drawer boxes, drawer box making machine. lt is flexible too perate and easy to adjust, which can reduce manufacturing costs from efficiency. it is a new solution for products such as electronic cigarette drawer boxes,jewelry drawer boxes, cosmetics drawer boxes,mobile phone drawer boxes, tea drawerboxes, etc. luxury drawer box making machine.
1. The box making machine is fully automatic, used servo to control the whole machine and the PLC, easy to operate. luxury drawer box making machine drawer box making machine
2. With robot arm to catch the grayboard and visual positioning, high precision to improve the quality. luxury drawer box making machine drawer box making machine
3. the box size range is large, all kinds of the drawer box can making. luxury drawer box making machine drawer box making machine
4. it adopts a leather shell cutting method and uses an electronic cam busalgorithm process to improve the produce speed luxury drawer box making machine drawer box making machine
Drawer box making machine picture: (luxury drawer box making machine, drawer box making machine)
drawer box making machine, luxury drawer box making machine,

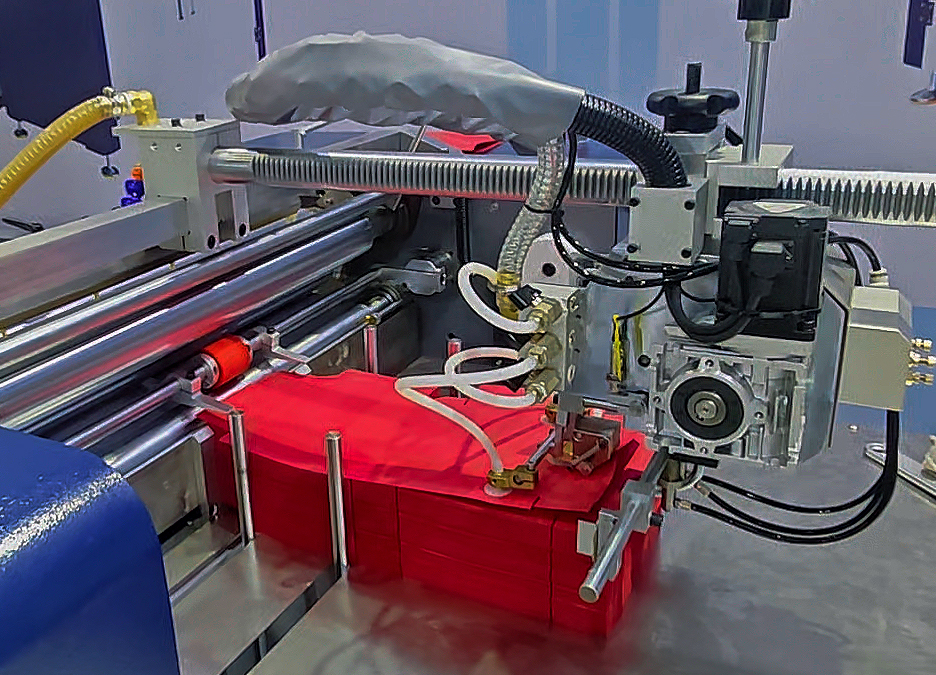

paper feeding by feeder
drawer box making machine, luxury drawer box making machine,

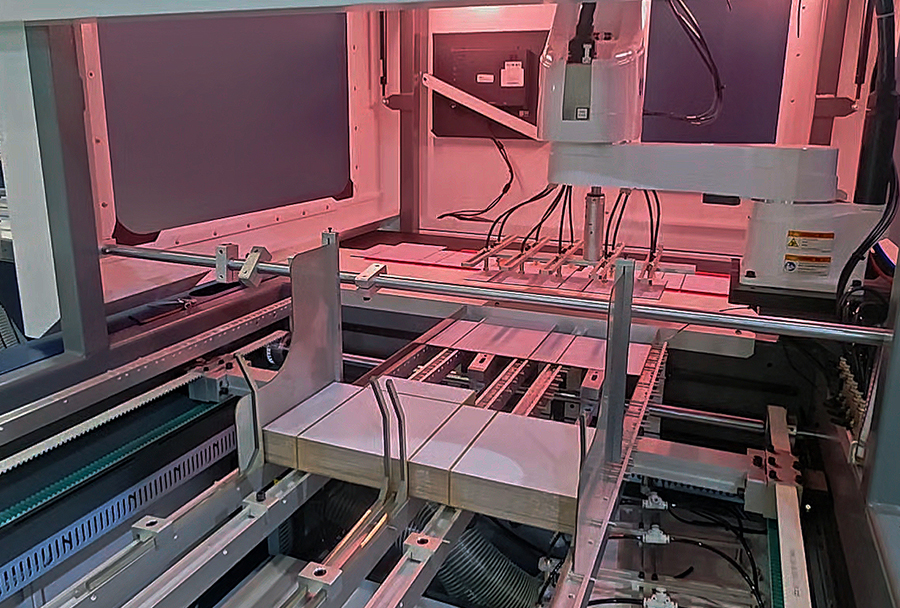

Visual positioning
drawer box making machine, luxury drawer box making machine,

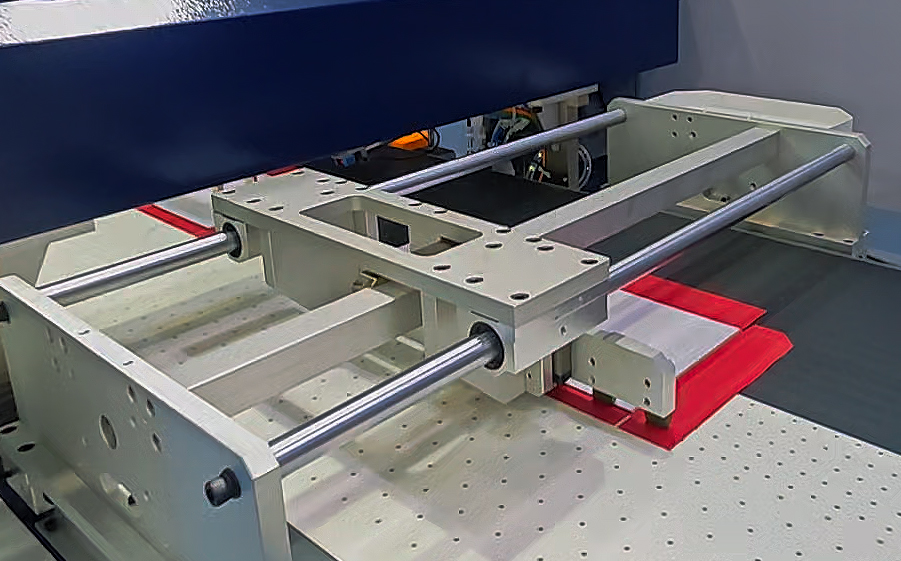

Rectification precision

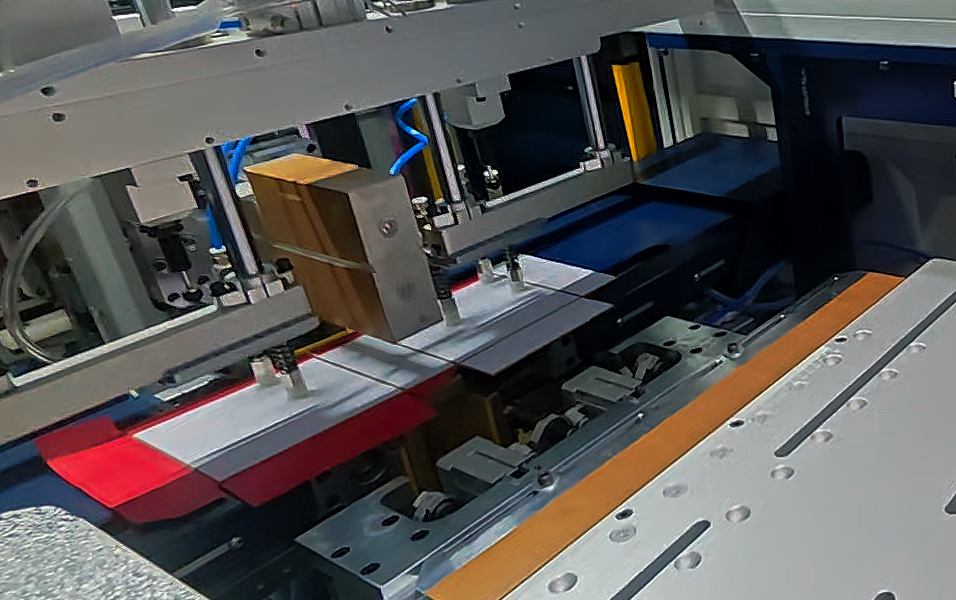

box forming part

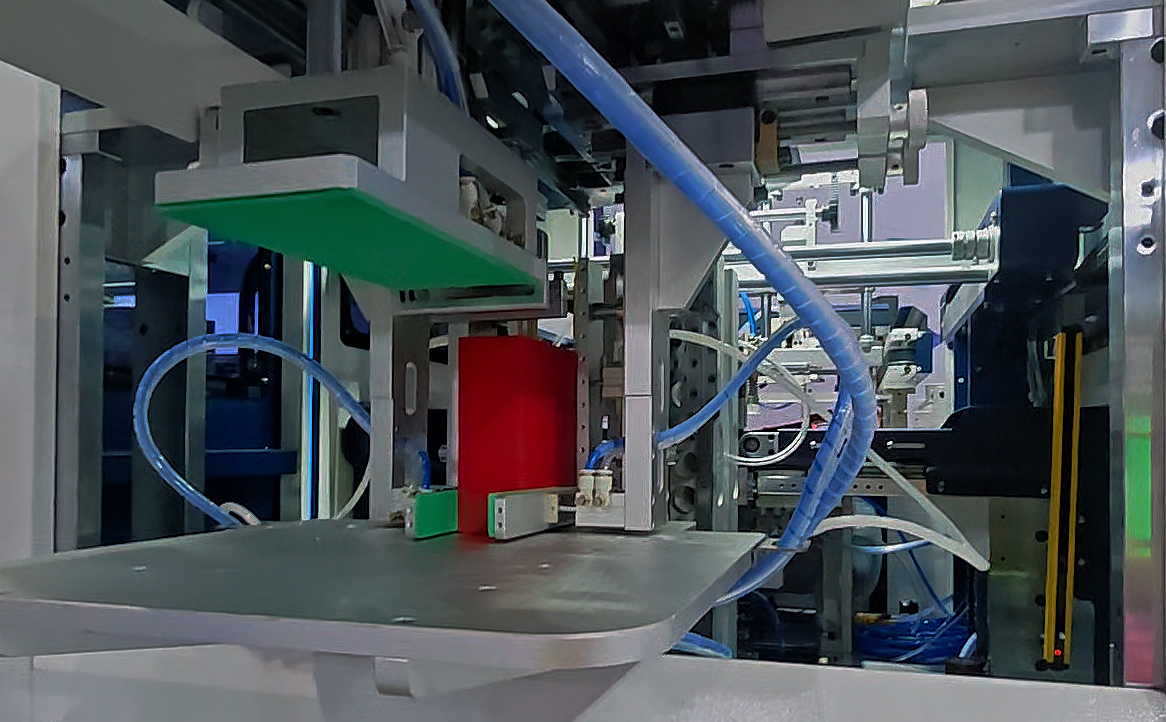

Stripping box finished the produce
Drawer box making machine parameter: (luxury drawerr box making machine, )
| Model | MF-1910 |
| Paper width size | 80-600mm |
| Paper length size | 120-900mm |
| Paper thickness | 80-250g/m2 |
| Gray board width size | 15-500mm |
Gray board length size | 100-900mm |
| Gray board thickness | 1-3mm |
| Max drawer box size | L190mmxW100mmxH230mm |
| Min drawer box size | L15mmxW15mmxH35mm |
| Production speed | 18-25pcs/min |
| Positioning precision | +0.2mm |
| Power Supply | 380V |
| Air Pressure | 0.6-0.8Mpa |
| Power | 9.7KW |
| Machine size | 9000x2500x1800mm |
| Machine Weight | 1600KG |
drawer box making machine, luxury drawer box making machine, box making machine

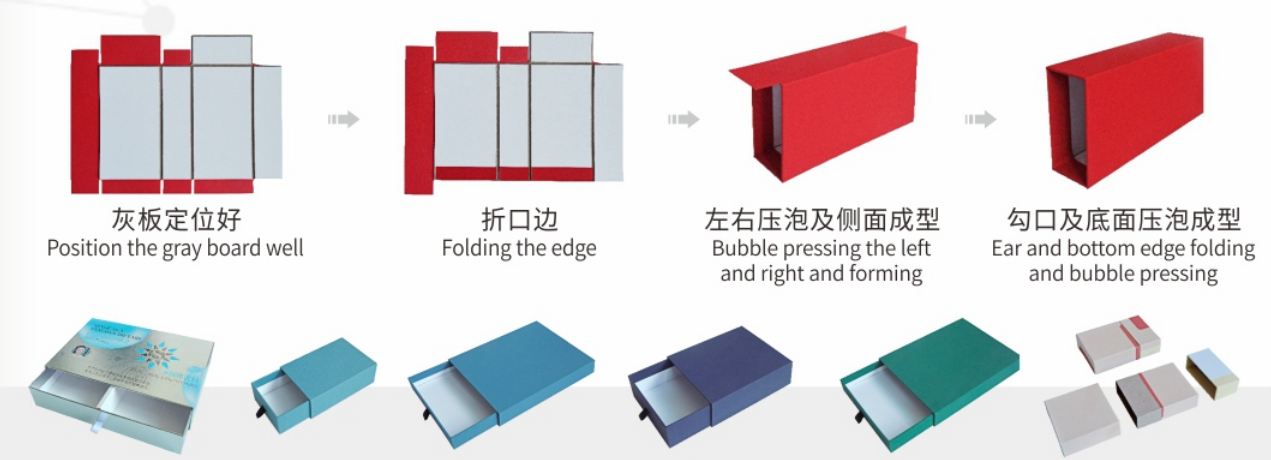

Drawer box making machine technology process: (drawer box making machine, luxury drawer box making machine, box making machine)

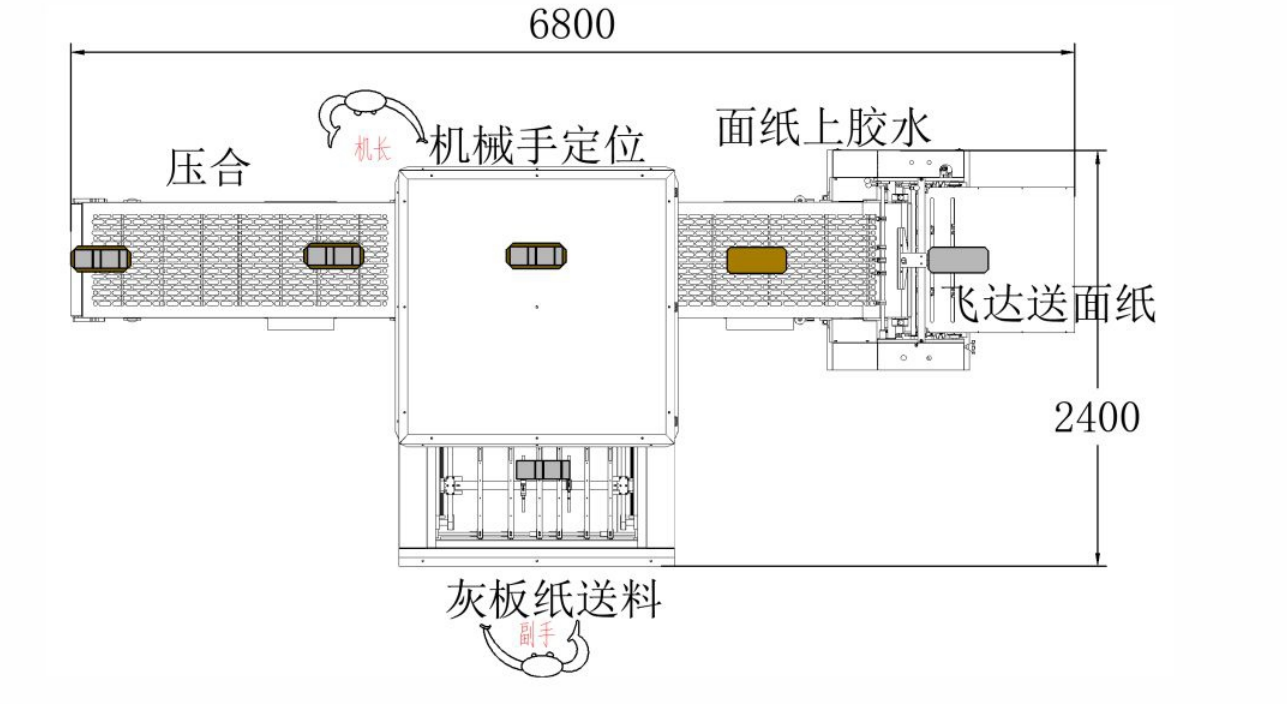

Drawer box making machine layout: (drawer box making machine, luxury drawer box making machine, box making machine)
Payment & shipping terms: (drawer box making machine, luxury drawer box making machine, box making machine)
| Minimum Order Quantity | 1pcs |
| Price | Negotiation |
| Package details | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T, L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
drawer box making machine, luxury drawer box making machine, box making machine
Service after sales: (drawer box making machine, luxury drawer box making machine, box making machine)
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ: (drawer box making machine, luxury drawer box making machine, box making machine)
1. What about the drawing box making machine warranty? (drawer box making machine, luxury drawer box making machine, box making machine)
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the drawer box making machine breaks down, how do you help us solve the problem? (drawer box making machine, luxury drawer box making machine, box making machine)
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What machines are used to make the drawer box?
---- Necessary equipments:Grooving machine, Die Cutter machine, Printing Machine, fully automatic rigid box making machine, Case maker machine, drawer box making machine.
